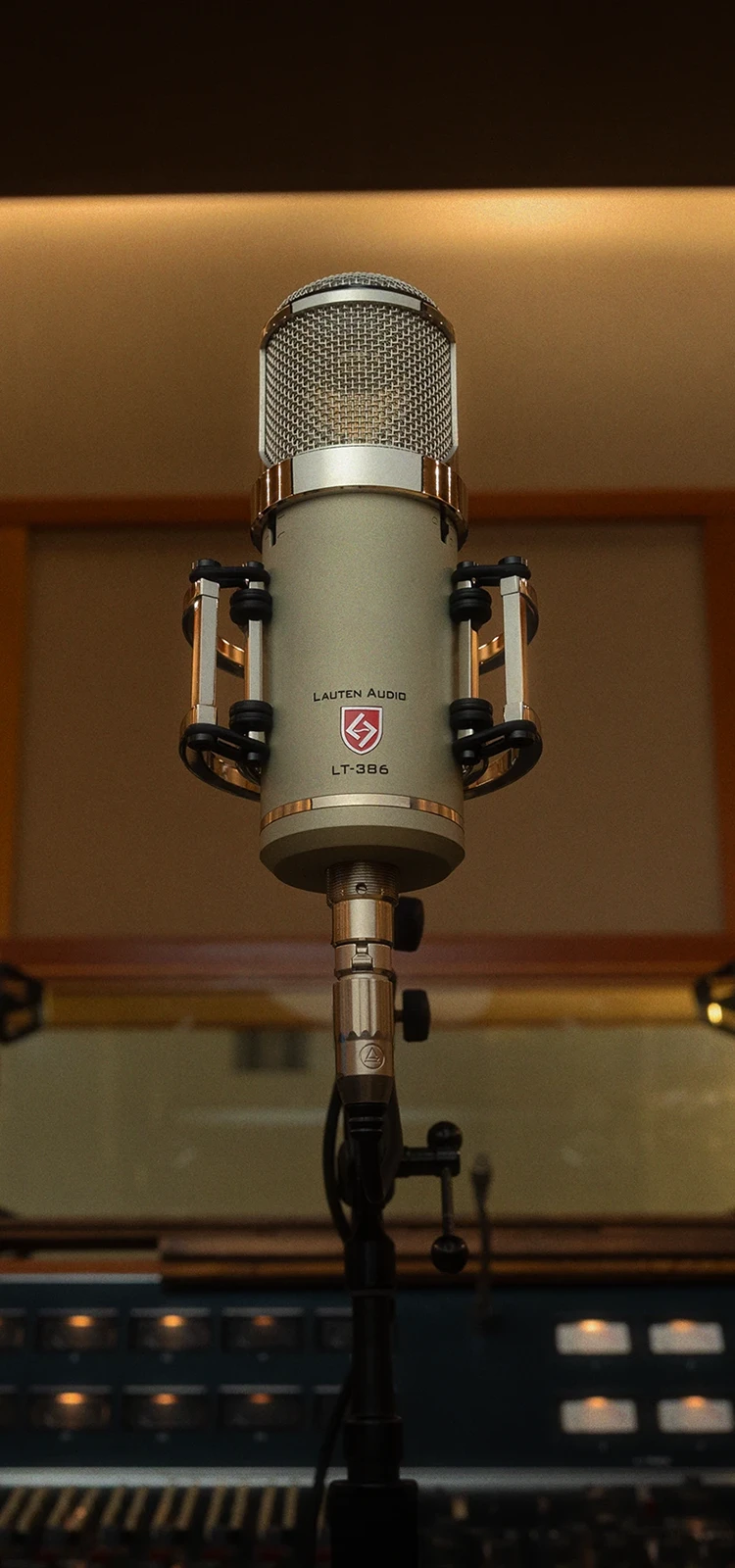

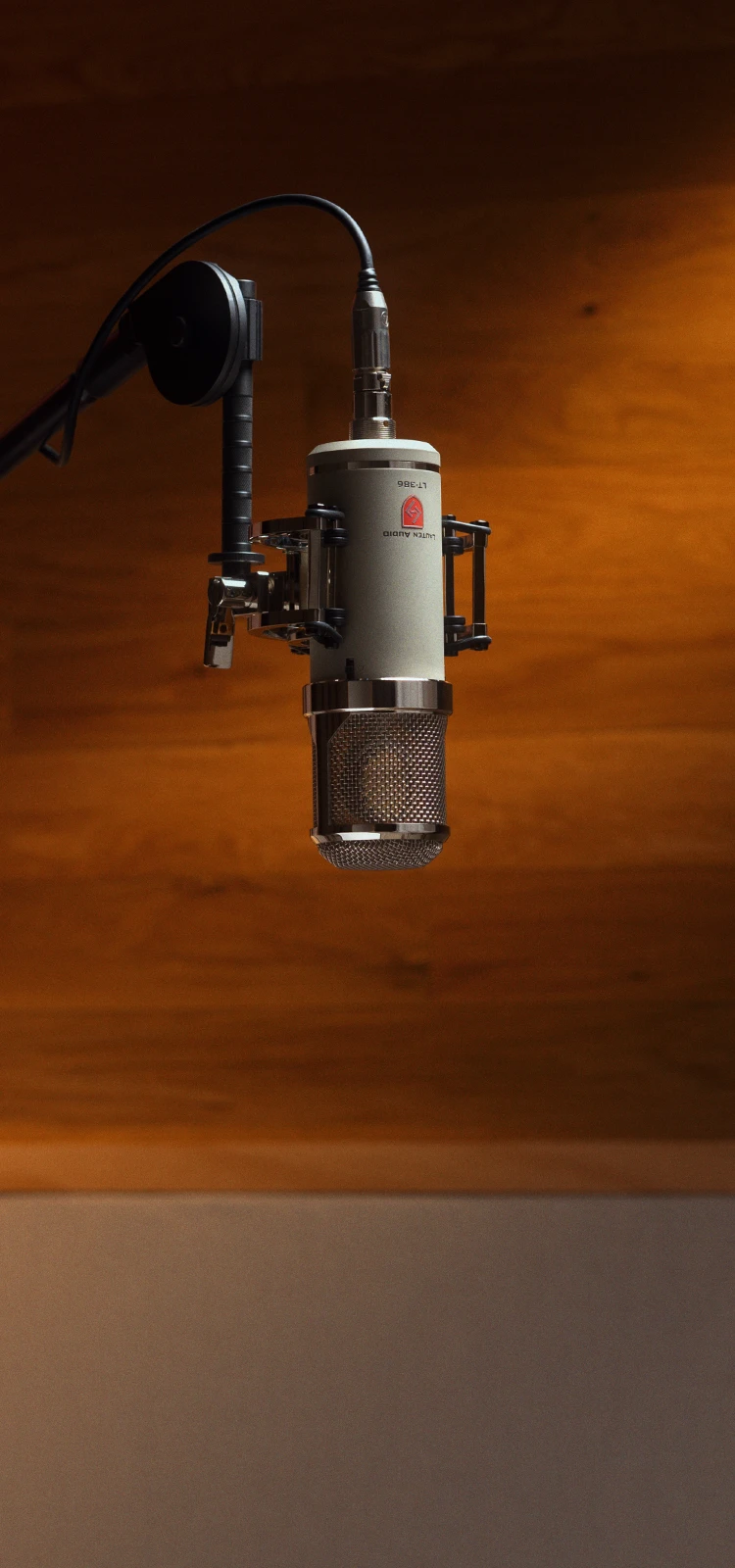

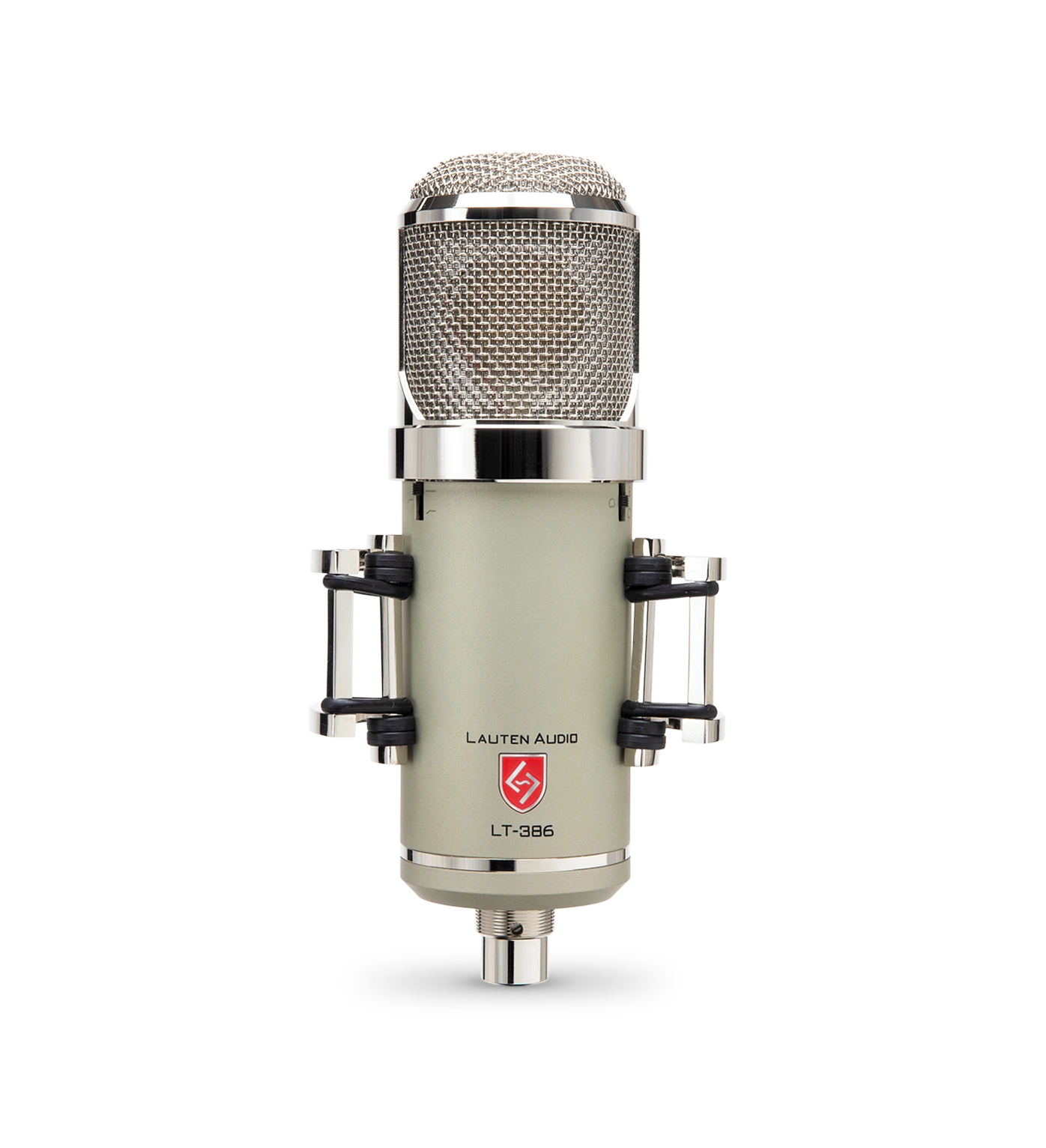

EDEN LT-386

MSRP: $3999

Multi-Voicing® Large-diaphragm Vacuum Tube Vocal Microphone

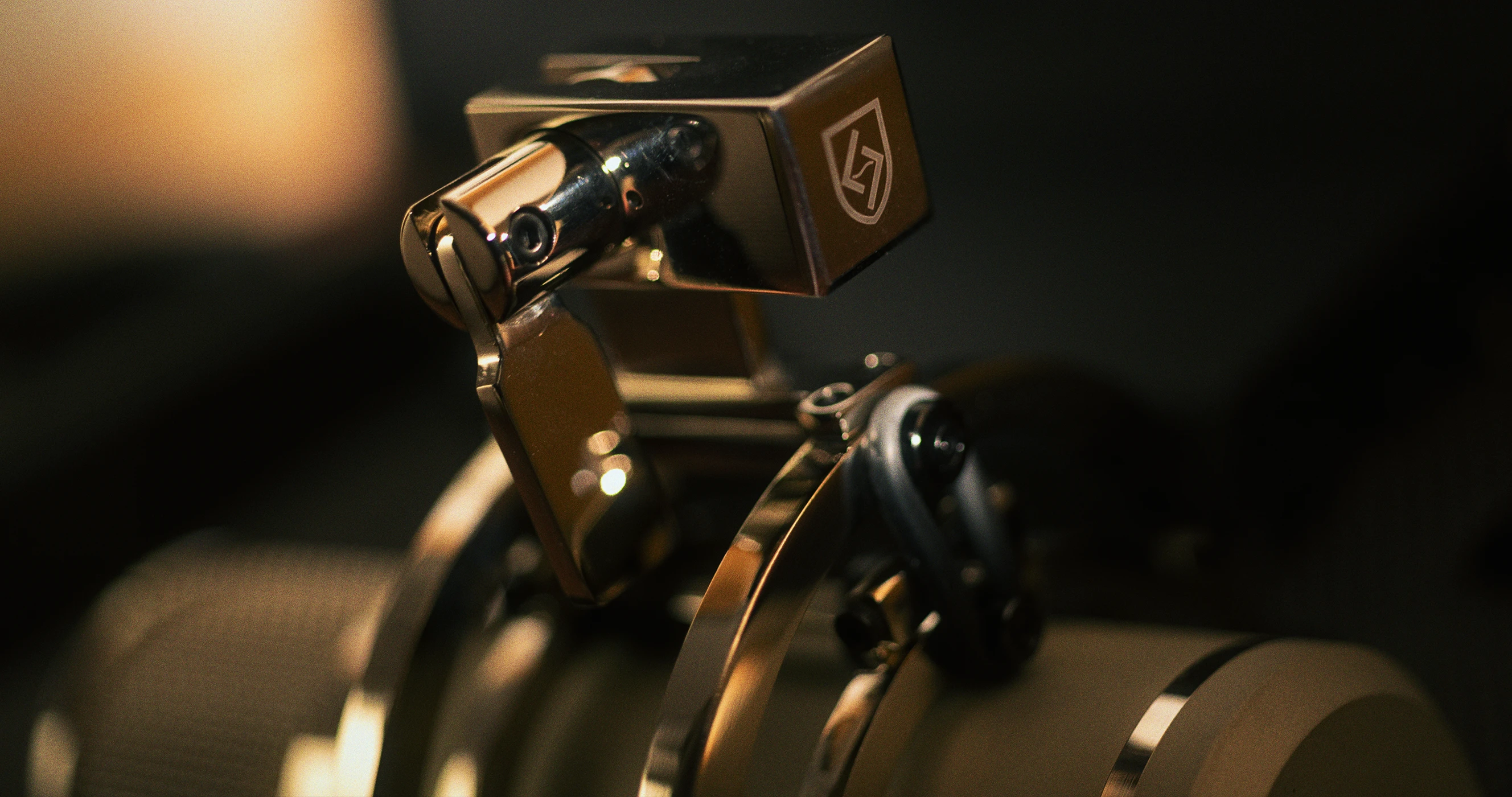

The Eden LT-386 by Lauten Audio is a Multi-voicing®  vacuum tube large diaphragm condenser microphone. The LT-386 is for discerning recordists in search of the most diverse and useful studio vacuum tube microphone. It offers a unique blend of classic and modern design theory which exhibits a smooth, rich low and mid-range as well as high mid and high timbre reminiscent of premier classic vacuum tube microphones. From its attached, semi-permanent, suspension mount, to its three different switches housed on the microphone itself, Eden offers an endless palette of sound.

EDEN LT-386 AT A GLANCE
  • Designed for the most discerning ears in the business

  • Multi-voicing® switch for three distinct timbres

  • Vocal shaping high-pass filter

  • Kick-drum shaping high-pass filter

  • Switchable patterns on the microphone

  • Stunning appearance, built to the hilt, refined character

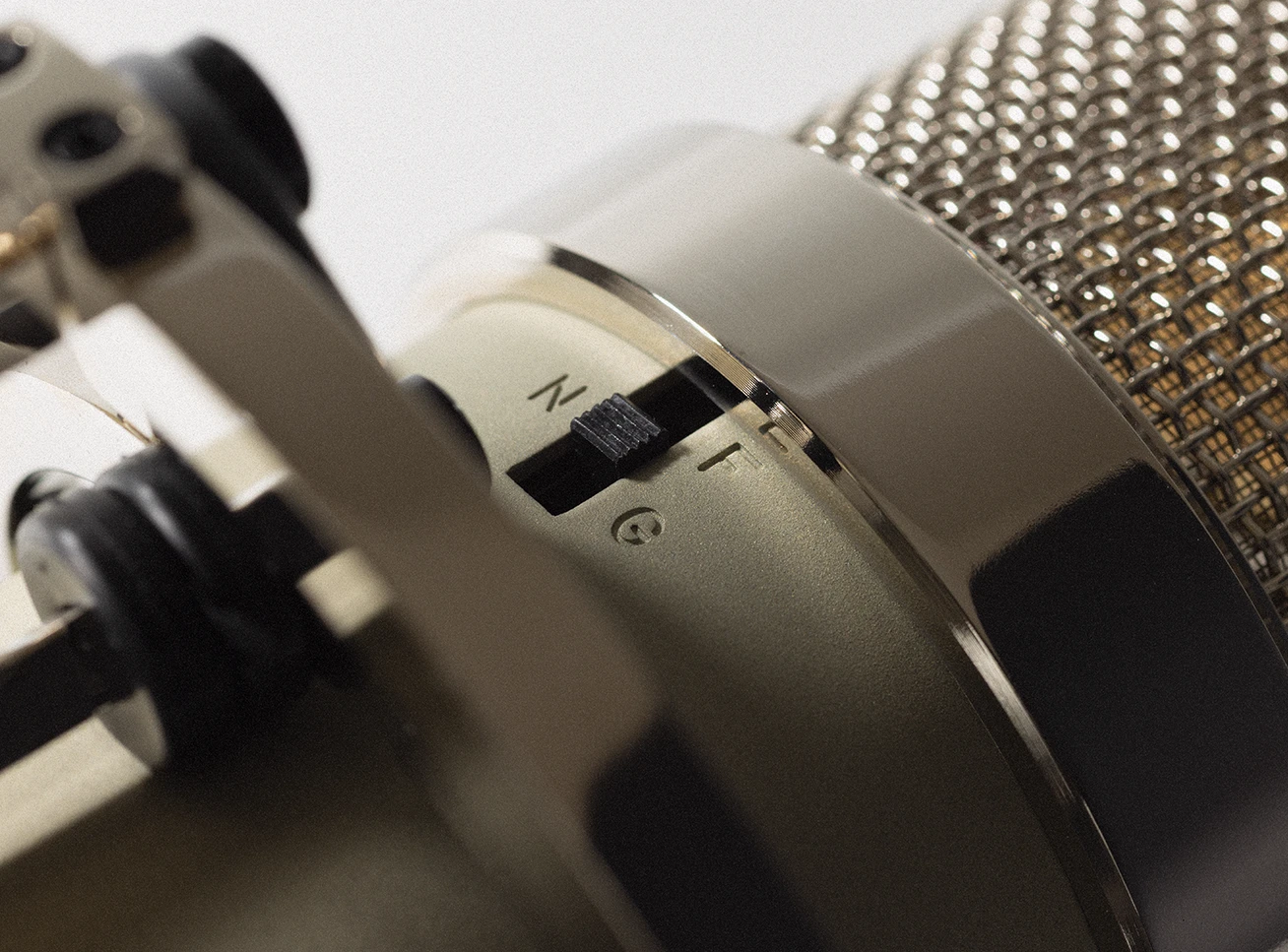

MULTI-VOICING® TECHNOLOGY

Multi-voicing is a process that can only be achieved inside the microphone. This is Lauten Audio’s proprietary technology that uses three separate signal paths for unique frequency shaping. The multi-voicing functions in the Eden LT-386 are individually designed and tuned for this microphone. The three multi-voicing modes are; Forward, Neutral and Gentle. The Gentle position provides maximum control of bright or peaky sources or to achieve a warm, vintage vibe. Select one of the high-pass filters, and you’ll think you have a completely different microphone. Neutral offers an even pleasant response with good control over S’s, and starts moving more toward a modern microphone, yet still wrapped in a vintage vibe. Lastly Forward opens up the microphone for that familiar “air” of classic microphones from the past with our own modern touch that Lauten Audio is known for.

VOCAL AND KICK SHAPING

The Eden LT-386 has a unique 2-stage, high-pass filter we call “Kick-shaper” and “Vocal-shaper”. These filters are uniquely tuned to shape the low-end for two of the most commons trouble areas. In its default position, there is no high-pass. Stage one, or the middle position, is the “Kick-shaper”; as you can probably guess, this was specifically designed for kick-drums. With its very steep cut of the low-end, it removes excess boominess that might actually take away from a big sounding kick. But feel free to try it on toms, vocals, guitars etc.  Moving the switch to stage 2, or the bottom position is the “Vocal-shaper” which is designed to clean up your vocal tracks for an amazingly smooth and classic sound. Of course, it will be useful for many more sources as well.

PATTERN SWITCH ON MICROPHONE

The polar pattern switch gives recordists the option of choosing between Cardioid, Omnidirectional or Figure-8 polar patterns. Having the pattern switch on the microphone, rather than the power supply, allows you or the artist to quickly and easily make your selection. Although not as common today, we were inspired by the most admired classics when we decided to put this feature on the microphone itself rather than on the external power supply.

FEATURE SUMMARY

The polar-pattern, high-pass filter and Multi-voicing functions make for a vacuum tube microphone like never before. Put it in figure-8, use the kick-shaper (first stage high-pass) and forward mode, or cardioid, vocal-shaper (second stage high-pass), and gentle, it’s almost an endless palette of options.

PREMIUM COMPONENTS

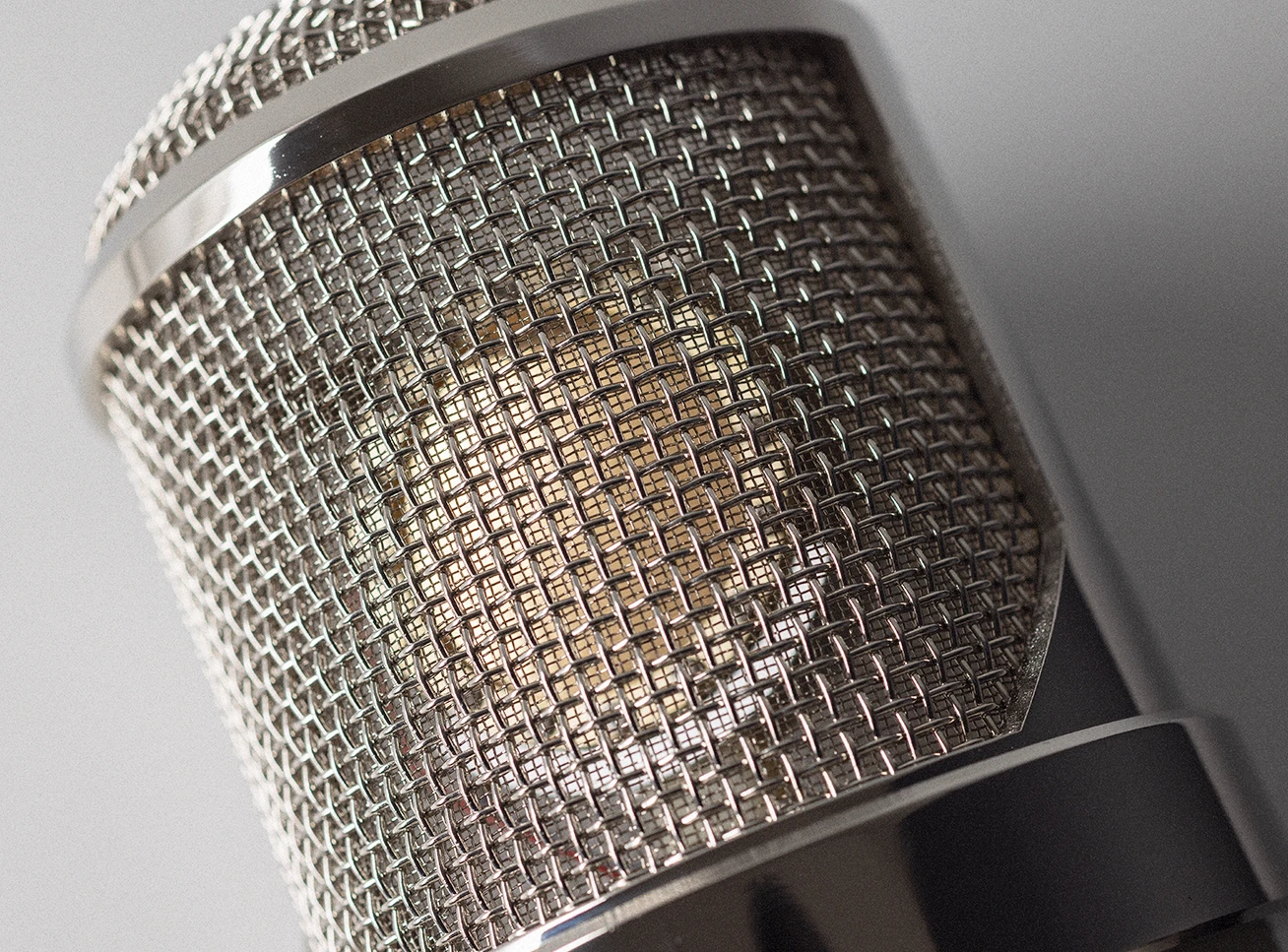

The Eden LT-386 uses our proprietary 38mm dual-diaphragm pressure gradient condenser capsule tuned specifically for this mic. It uses a custom wound US-made output transformer for excellent control of transients. The vacuum tube is a modern EF806s aged using a proprietary process developed by Lauten Audio. The mic also features high-quality, high-tolerance resistors and capacitors, Switchcraft® connectors on the microphone, cable and power-supply, and our own custom tube microphone cable.

FINE FINISH​

Eden’s body is finished with a state-of-the-art ceramic coating process and the head and suspension mount nickel plated, all of which happens in Silicon Valley, California.

The Eden LT-386 by Lauten Audio is a modern microphone like no other. It’s stunningly attractive, built to the hilt, and sounds beautiful.

SOUND SAMPLES & COMPARISONS
FEATURES AND SPECIFICATIONS
  • Extra-large 38mm dual-diaphragm capsule

  • Cardioid, Omni & Figure-8 polar patterns

  • Multi-voicing® technology (3 distinct timbres)

  • Kick-shaper

  • Vocal-shaper

  • Detachable Shock Mount

  • Special ceramic coating

  • Custom wound output transformer

  • Vacuum tube, transformer balanced

  • Type: Pressure gradient condenser

  • Polar Pattern: Cardioid, Omnidirectional & Figure-8

  • Freq. Response: 20Hz-20KHz

  • Dynamic Range: 120dB minimum

  • Impedance: <200 ohms

  • Max. SPL: 0.5%THD@1000Hz: 130dB​

  • Self-noise level: < 12dB(A)

  • Sensitivity: 16mV/Pa OR -36±2dB 0dB=1V/Pa 1KHz

  • Special Features: 3 unique timbre settings

  • Special Features: Kick-shaper & Vocal-shaper

  • Connector: 5-pin XLR (PSU to microphone) and 3-pin XLR (PSU to Preamp)

  • Power: Custom power supply (100v to 240v compatible)

POLAR PATTERNS & FREQUENCY RESPONSE
INCLUDED ACCESSORIES

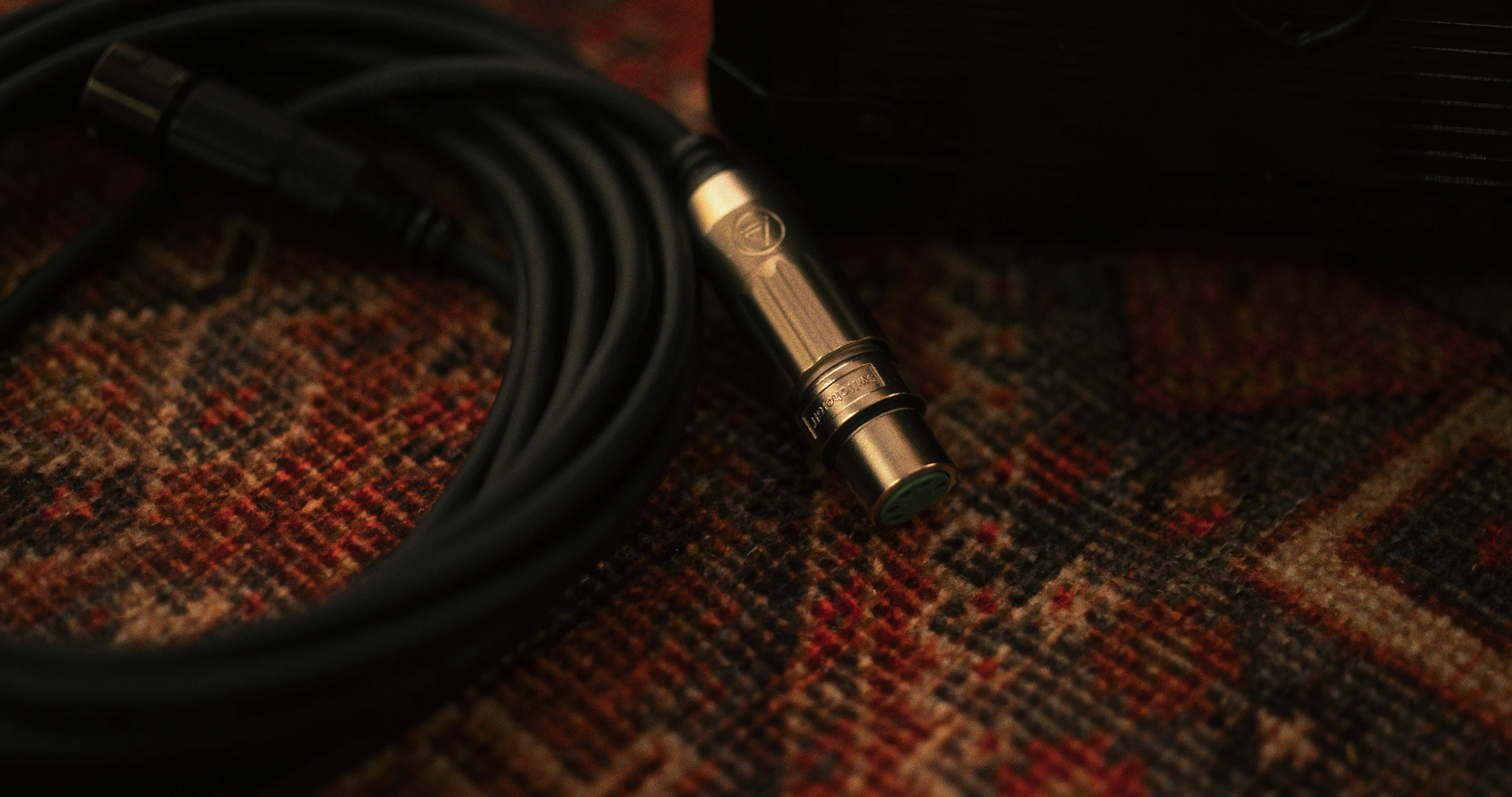

Custom Cable
Shock mount

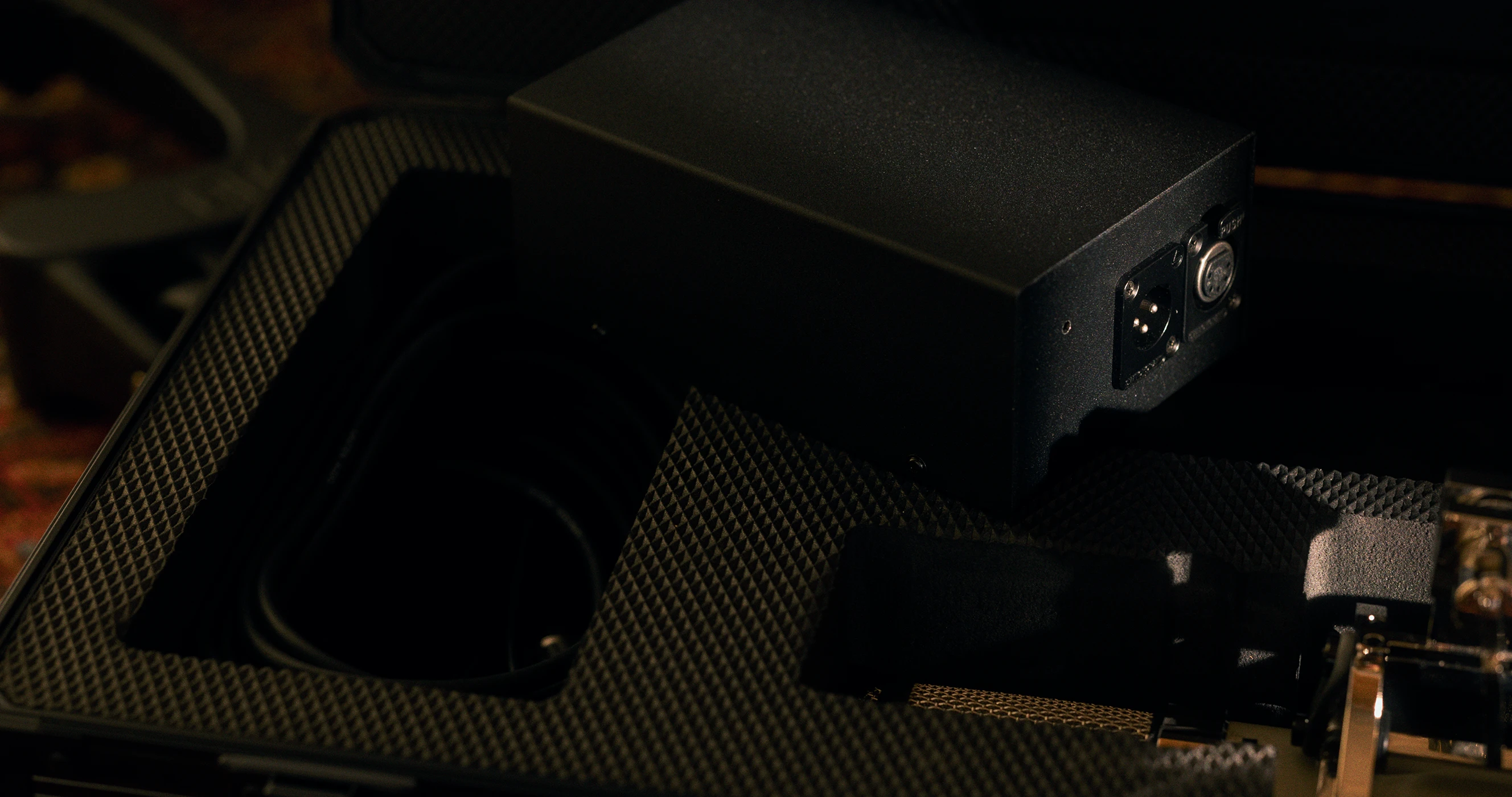

Power Supply

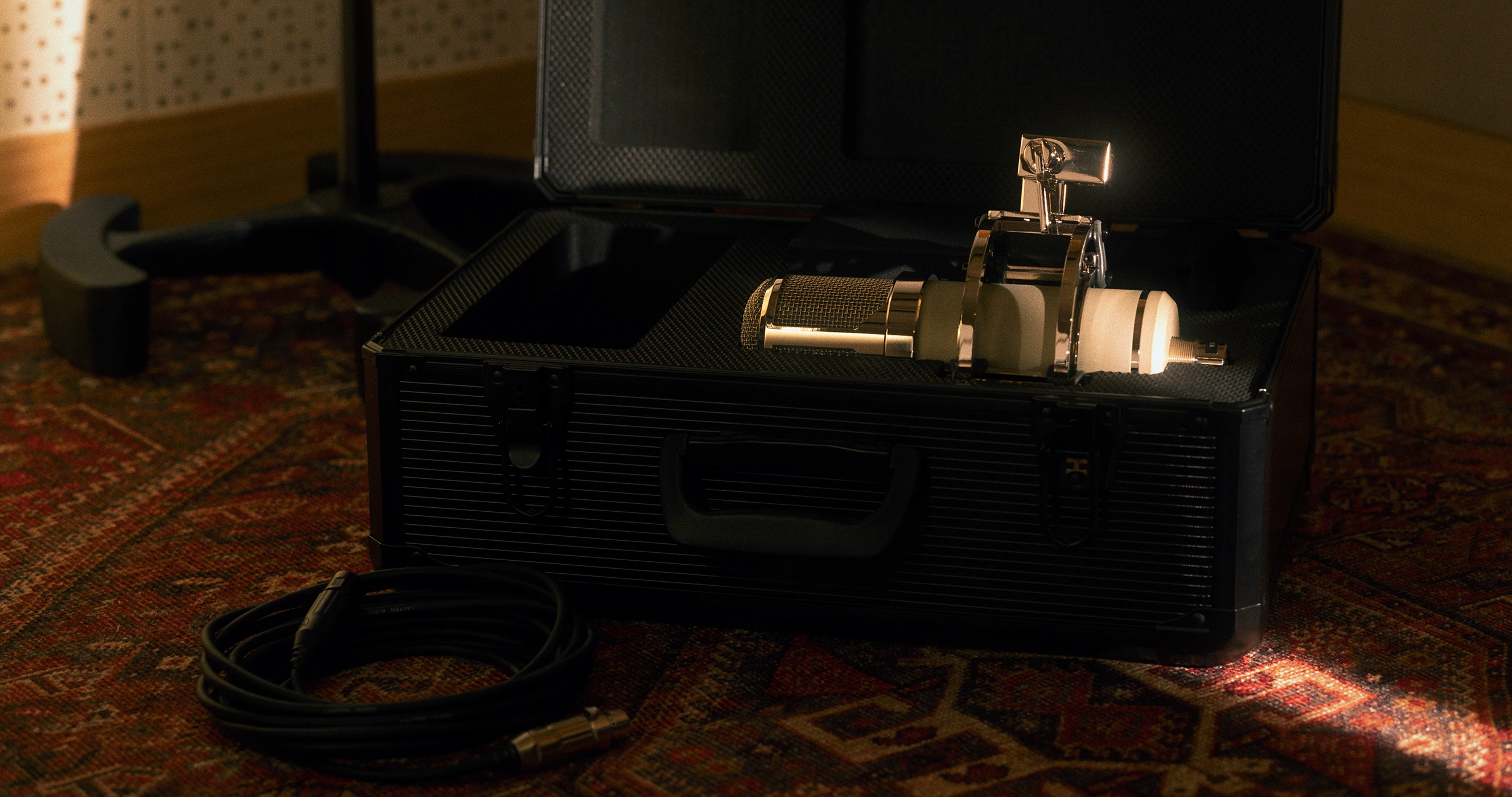

Hard Case
WARRANTY

This microphone comes with a 3 year limited warranty from date of sale from authorized dealer/distributor. Items limited to 90-days coverage include shock mounts, shock mount bands, cases, boxes, cables, microphone bags, and vacuum tubes.

Specifications and descriptions subject to change without notice.
